Global manufacturer of refrigerated display case

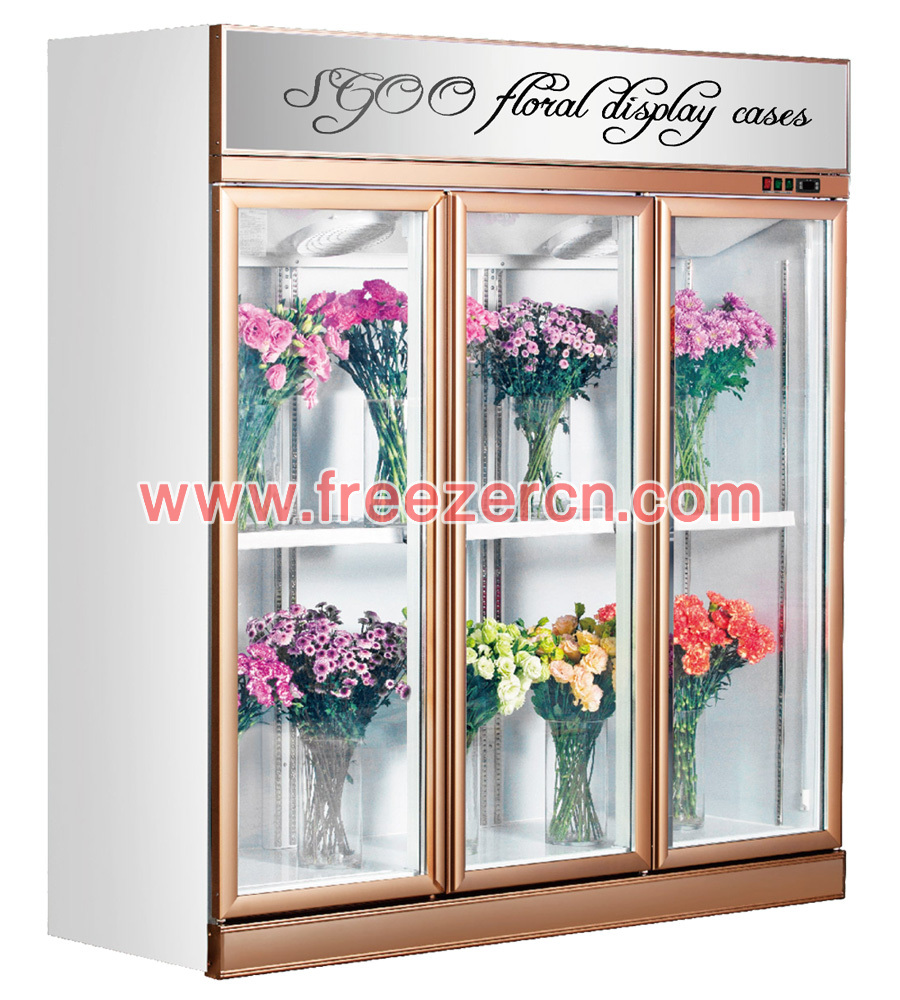

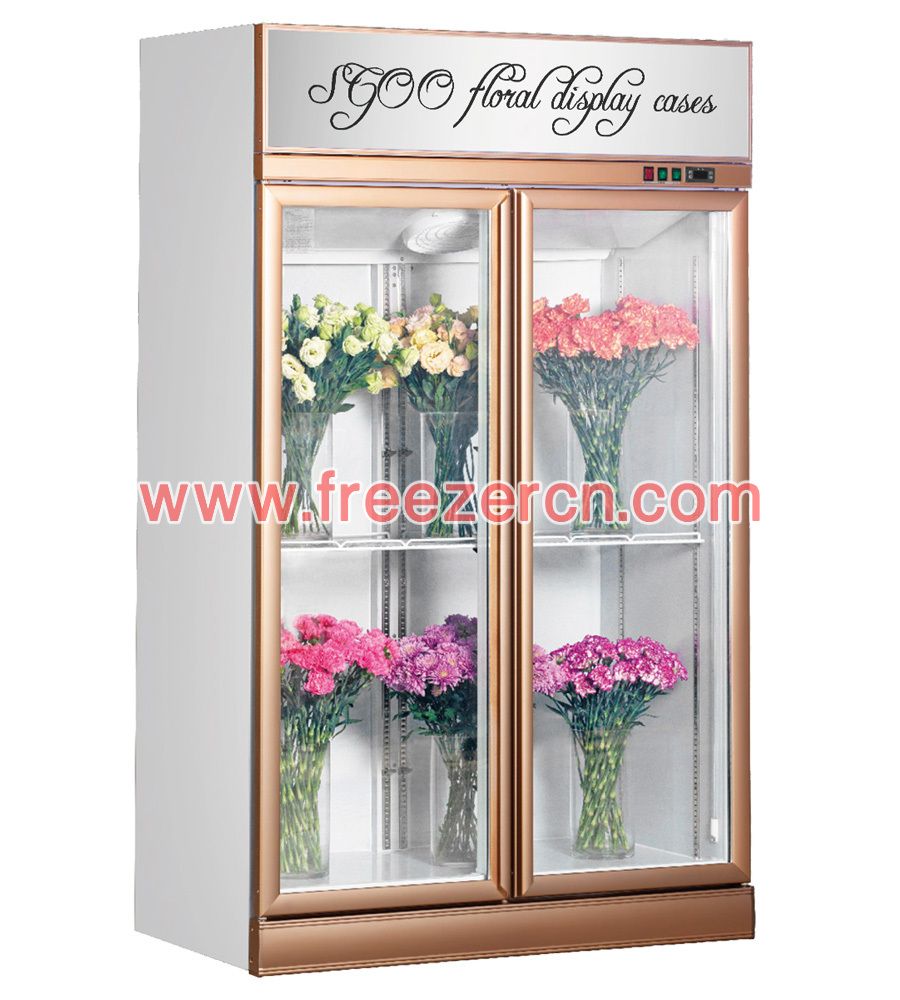

Model | MS-19XH-2D | MS-19XH-3D | ||
---|---|---|---|---|
Exterior (D x W x H) | 1200*690*2150 | 1800*690*2150 | ||
Interior (D x W x H) | Reference drawings | Reference drawings | ||
Doors | 2 door | 3 door | ||
Unit Weight | 170KG | 230KG | ||
Energy Consumption (KWhr/day) | 6.5KWH/24H | 9.5KWH/24H | ||
Electrical Power/ Current | 650W | 950W | ||
Number of Shelves /Type | Adjustable shelf | Adjustable shelf |
SPECIFICATION | CONTENT |
---|---|
rated voltage: | 220 V~240V / 50 Hz Customizable 110V~240V/50-60HZ |
Power Plug/Cord Length | 16A、3M |
Refrigerating system | Air-Cooling |
Compressor brand | Panasonic Sanyo Can be modified according to needs |
Refrigerant Type | R-404A / R290 / R507 Can be modified according to needs |
Evaporators | Copper Tube with aluminum fins |
Condenser | Copper Tube with aluminum fins |
Throttle modes | expansion valve |
temperature control | Electronic temperature controller with display |
Adjustable Set Point Range | 0~20℃ |
Factory Set Point | 2~15℃ |
Lighting control | Exterior switch-activated interior LED lighting |
Light type | Neutral white LED lighting |
Leveling Legs | Standard |
Doors type | panes made of combined, double tempered glass (low-E) or Electric defogging |
Night curtain | Deceleration curtain |
Ambient Operating Temp. (°C) | 20°C to 32°C |
Application Environment | Non-corrosive, non-flammable, non-explosive |
Indoor/Outdoor Use | Indoor use only |
Design condition | 3(25℃,60%RH) |
Shelf adjustment | adjustable |
Compressor Location | Bottom or Top |
Condensate treatment | Automatic condensate evaporation system |
defrost | defrosting automatic |
Cabinet /color | Black / White / grey ☑ custom |
Internal Cabinet material | Galvanized sheet paint |
foaming | cyclopentane |
Certifications & Compliances | ISO9001、CE Can apply for local national standards |
