Home  >  Refrigeration Display Cases » Floral Cooler » MS-Q21YH Bottom mounted unit Glass door floral fridge
More Floral Cooler related products
Create a paradise for flowers, Do you focus on delivering the highest quality beauty? A Floral Cooler will help you avoid waste, keep flowers fresh longer, and display floristic works of art.The florist fridge or walk in floral cooler is a paradise for flowers and the perfect solution for professionals. It creates the best climate to save your money.

All products support customization！
If you have any custom requirements for color, size, appearance, please contact us。

Mobile/WhatsApp: +86-18164468630
Email: freezercn@foxmail.com
Wechat online

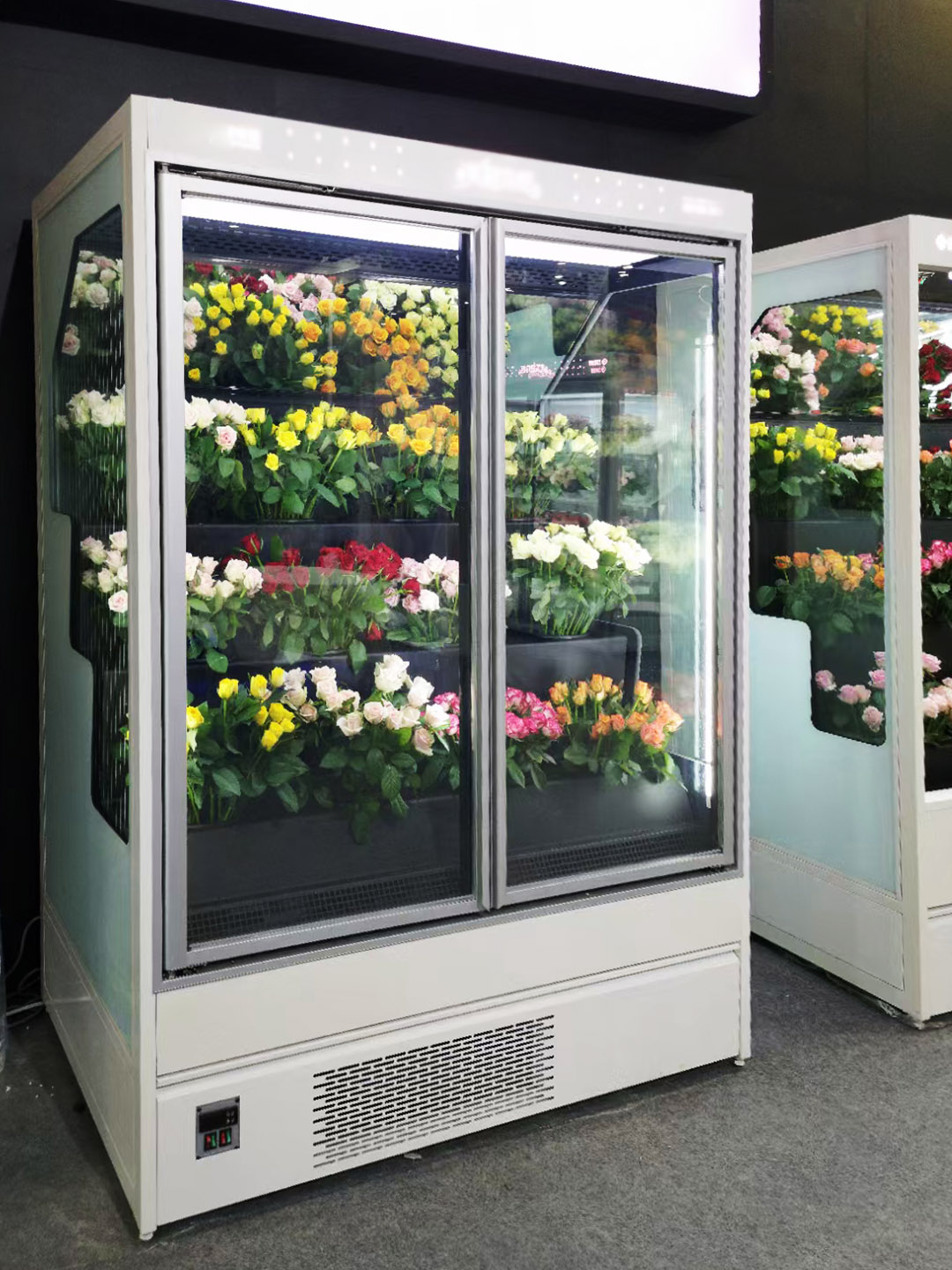

MS-Q21YH Bottom mounted unit Glass door floral fridge

Model MS-Q21YH-A2D MS-Q21YH-B2D MS-Q21YH-A3D MS-Q21YH-B3D MS-Q21YH-A4D MS-Q21YH-B4D MS-Q21YH-A5D MS-Q21YH-B5D
Exterior (D x W x H) 1350*900*2080 1550*900*2080 1978*900*2080 2274*900*2080 2606*900*2080 2998*900*2080 3234*900*2080 3722*900*2080

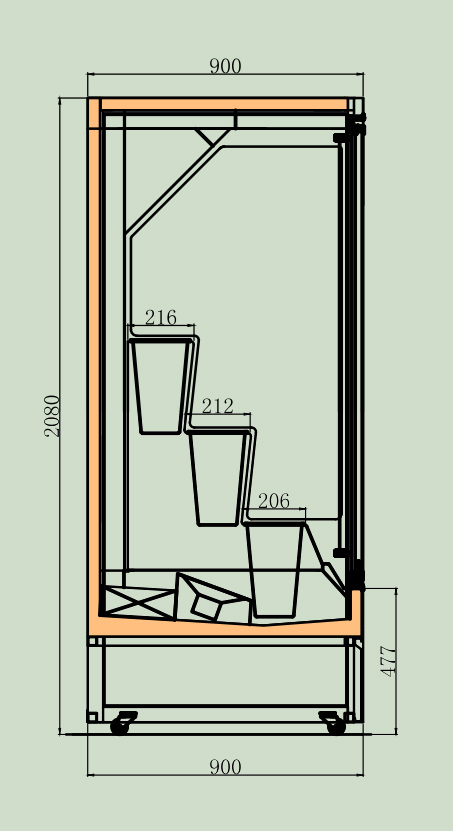

Interior (D x W x H) drawing drawing drawing drawing drawing drawing drawing drawing
Doors 2 doors 2 doors 3 doors 3 doors 4 doors 4 doors 5 doors 5 doors
Unit Weight 202KG 232KG 297KG 345KG 390KG 450KG 480KG 551KG
Energy Consumption (KWhr/day) 9.6KWH/24H 11.4KWH/24H 14.2KWH/24H 17KWH/24H 19.2KWH/24H 22.8KWH/24H 24KWH/24H 28.2KWH/24H
Electrical Power/ Current 800W 950W 1200W 1420W 1600W 1900W 2000W 2370W
Number of Shelves /Type Adjustable shelf Adjustable shelf Adjustable shelf Adjustable shelf Adjustable shelf Adjustable shelf Adjustable shelf Adjustable shelf
SPECIFICATION CONTENT
rated voltage： 220 V~240V / 50 Hz  Customizable 110V~240V/50-60HZ
Power Plug/Cord Length 16A、3M
Refrigerating system Air-Cooling
Compressor brand Panasonic Sanyo Can be modified according to needs
Refrigerant Type R-404A / R290 / R507  Can be modified according to needs
Evaporators Copper Tube with aluminum fins
Condenser Copper Tube with aluminum fins
Throttle modes expansion valve
temperature control Electronic temperature controller with display
Adjustable Set Point Range 0~20℃
Factory Set Point 2~15℃
Lighting control Exterior switch-activated interior LED lighting
Light type Neutral white LED lighting
Leveling Legs Standard
Doors type panes made of combined, double tempered glass (low-E) or Electric defogging
Night curtain Deceleration curtain
Ambient Operating Temp. (°C) 20°C to 32°C
Application Environment Non-corrosive, non-flammable, non-explosive
Indoor/Outdoor Use Indoor use only
Design condition 3（25℃，60%RH）
Shelf adjustment adjustable
Compressor Location Bottom or Top
Condensate treatment Automatic condensate evaporation system
defrost defrosting automatic
Cabinet /color Black / White / grey ☑ custom
Internal Cabinet material Galvanized sheet paint
foaming cyclopentane
Certifications & Compliances ISO9001、CE Can apply for local national standards
