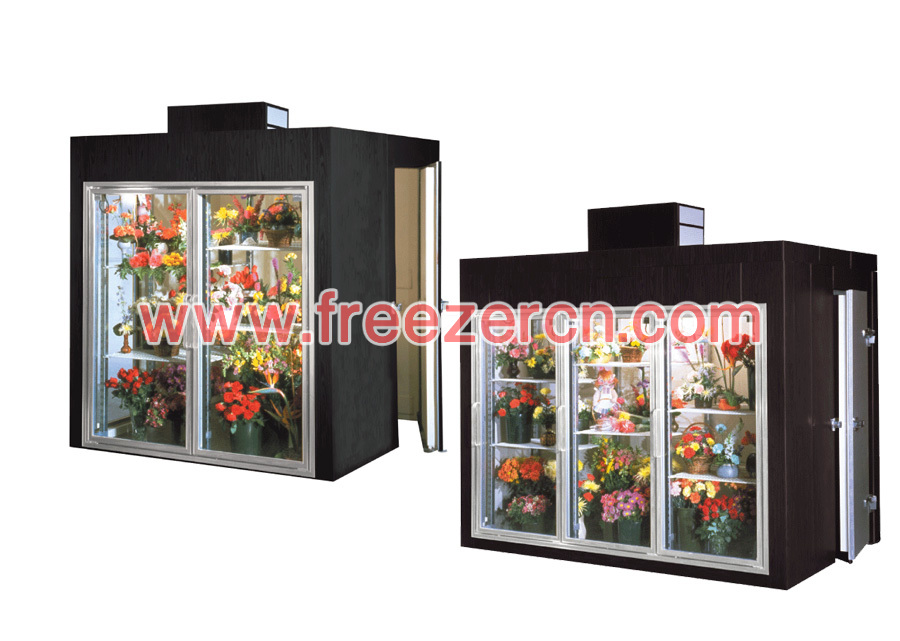

Global manufacturer of refrigerated display case
ACR/AFR | Unit | N |
---|---|---|
Width | mm | 705*N+200(N=Glass door amount ) |
Deep | mm | 1800~2200 |
Height | mm | 2200~2800 |
Panel thickness | mm | 75/100/120/150 |
Door amount | N | |
De-fogging type | Anti-fog with LOW-E tempered glass | |
Glass door | 2to+10°C | 2 layer tempered glass door with electrical heating wire |
Glass door | -1810-22°C | 3 layer tempered glass door with electrical heating wire |
Glass door frame | Pure aluminurm with electncal heating wire | |
Exterior&Interior | Colored powder-coated steel plate | |
Defrost type | Auto defrost | |
Water dryer | Extemal water pipe | |
Evaporator | Copper tube fin | |
Thermostat | Digital controller | |
Compressor | Copeland /Sanyo/Bitzer | |
Shelves style | Gnd/Solid | |
Door open type | Hinge door/Swing door /Sliding door |
SPECIFICATION | CONTENT |
---|---|
rated voltage: | 220 V~240V / 50 Hz Customizable 110V~240V/50-60HZ |
Power Plug/Cord Length | 16A、3M |
Refrigerating system | Air-Cooling |
Compressor brand | Panasonic Sanyo Can be modified according to needs |
Refrigerant Type | R-404A / R290 / R507 Can be modified according to needs |
Evaporators | Copper Tube with aluminum fins |
Condenser | Copper Tube with aluminum fins |
Throttle modes | expansion valve |
temperature control | Electronic temperature controller with display |
Adjustable Set Point Range | 0~20℃ |
Factory Set Point | 2~15℃ |
Lighting control | Exterior switch-activated interior LED lighting |
Light type | Neutral white LED lighting |
Leveling Legs | Standard |
Doors type | panes made of combined, double tempered glass (low-E) or Electric defogging |
Night curtain | Deceleration curtain |
Ambient Operating Temp. (°C) | 20°C to 32°C |
Application Environment | Non-corrosive, non-flammable, non-explosive |
Indoor/Outdoor Use | Indoor use only |
Design condition | 3(25℃,60%RH) |
Shelf adjustment | adjustable |
Compressor Location | Bottom or Top |
Condensate treatment | Automatic condensate evaporation system |
defrost | defrosting automatic |
Cabinet /color | Black / White / grey ☑ custom |
Internal Cabinet material | Galvanized sheet paint |
foaming | cyclopentane |
Certifications & Compliances | ISO9001、CE Can apply for local national standards |
