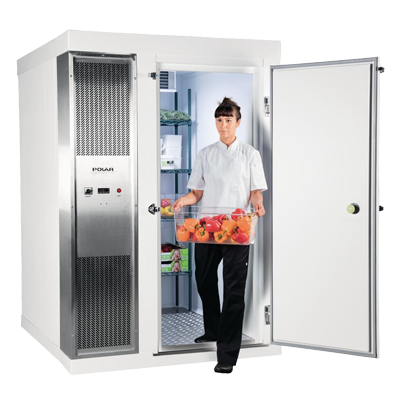

Side-embedded integrated frequency conversion walk in freezer unit |
|||||
|---|---|---|---|---|---|
|
Unit Type |
MS-BYTCN1P |
MS-BYTCN2P |
MS-BYTCN3P |
MS-BYTCN4P |
|
|
power supply |
220V/50Hz |
||||
|
Evaporation temperature range（℃） |
-40～-5℃ |
||||
|
Compressor model |
C-6RVN63L0B |
C-7RHVN113L0B |
C-7RHVN153L0B |
C-8RZ420L4BAL |
|
|
Operating range |
30～80Hz |
||||
|
Maximum operating current |
5 |
9 |
13 |
18 |
|
|
Voltage control type |
Diaphragm pressure controlor Electronic pressure sensor |
||||
|
Condensing fan |
power |
120 |
150 |
120 |
150 |
|
quantity |
1 |
1 |
2 |
2 |
|
|
Evaporator fan |
power |
80 |
120 |
80 |
120 |
|
quantity |
1 |
1 |
2 |
2 |
|
|
Dimensionslength*width*height（mm） |
600*710*710 |
730*890*825 |
925*890*825 |
1025*980*950 |
|
|
product weight（Kg） |
71Kg |
82Kg |
105Kg |
150Kg |
|
|
Packaging size (length*width*height)mm |
670*880*800 |
820*1000*1000 |
1050*1000*1000 |
1120*1070*1060 |
|
|
Total export packaging weight（Kg） |
113Kg |
130Kg |
165Kg |
185kg |
|
|
Refrigeration capacity |
Test conditions: Ambient temperature: 32℃, rotation speed 70Hz |
||||
|
Evaporation temperature |
-5 |
2250 |
4280 |
6850 |
9100 |
|
-15 |
1560 |
3050 |
4350 |
5800 |
|
|
-25 |
1020 |
2300 |
3230 |
4050 |
|
|
-35 |
760 |
1520 |
2050 |
2840 |
|
|
rated power |
780 |
1550 |
2260 |
3200 |
|
|
Features |
1. Sanyo DC low-temperature compressor, Sanhua electronic expansion valve, integrated control board, comes with cabinet temperature and defrost temperature probes, and LCD display panel. 2. Multiple defrost modes, including timed, automatic and thermal fluoride defrost. 3. The whole machine has multiple protections and automatic detection and reset. 4. Integrated embedded installation, ready to operate after being connected to power. |
||||
| SPECIFICATION | CONTENT |
|---|---|
| rated voltage： | 220 V~240V / 50 Hz Customizable 110V~240V/50-60HZ |
| Power Plug/Cord Length | 16A、3M |
| Refrigerating system | Air-Cooling |
| Compressor brand | Cubigel Can be modified according to needs |
| Core Components | Refrigeration Units |
| Refrigerant Type | R290 / R507 Can be modified according to needs |
| Panel Thickness | 100mm, 200mm, 120mm, 75mm, 150mm |
| foaming | cyclopentane |
| Refrigeration Type | Self-Contained |
| Material | Stainless Steel/ Painted Steel |
| temperature control | Electronic temperature controller with display |
| Adjustable Set Point Range | -22~15℃ |
| Factory Set Point | -18℃ |
| Lighting control | Exterior switch-activated interior LED lighting |
| Light type | Neutral white LED lighting |
| Doors type | Swinger Solid or Glass |
| Condensate treatment | Automatic condensate evaporation system |
| defrost | defrosting automatic |
| Certifications & Compliances | ISO9001、CE Can apply for local national standards |
